Revolutionizing Data Capture

A VoBo is an industrial grade endpoint that enables almost any sensor to be used for industrial LoRaWAN® solutions.

HOW IT WORKS

Sensors

VoBo endpoints collect and transmit data to LoRaWAN® servers on a customer-defined cycle.

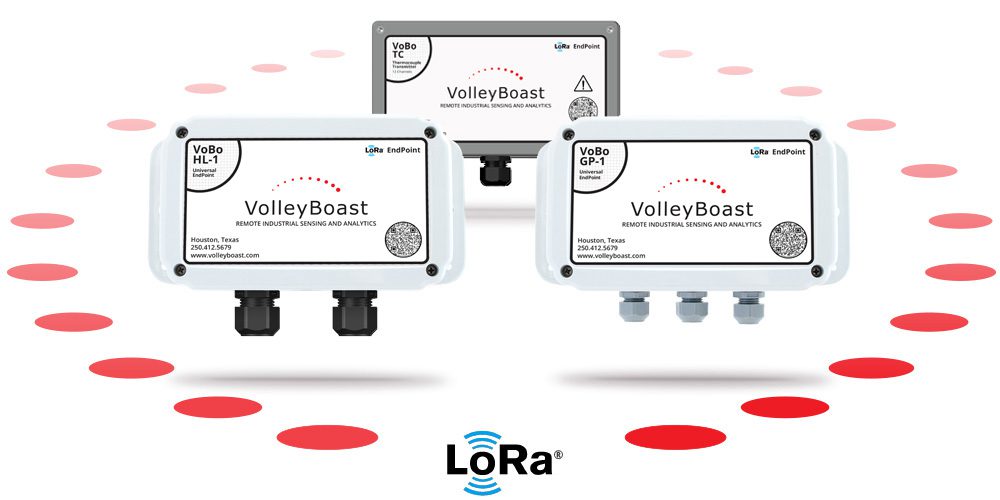

VoBosGPHLTC2

VoBo endpoints work with all LoRaWAN compliant network servers.

Network Servers

ENDPOINTS

24 XP1Straight800x600

VoBo XP™

(New!)

Externally Powered Universal LoRaWAN® Endpoint

  • Externally Powered
  • LoRaWAN® Class A and C
  • 3 Analog Inputs: 4-20mA, 0-5V, 0-10V, NAMUR
  • 2 Digital Inputs: dry contact, voltage, PNP, NPN, Pulse Count
  • 1 Digital Interrupt Input – dry contact wake-up
  • 4 Digital Outputs: low-side drivers
  • Digital Output control by downlink or on-board logic
  • Serial: RS485 Modbus® RTU, RS232
  • Multiple Modbus® device read/write available
  • Online and Offline Modes
  • Capable of continuously powering sensors
  • Supports US915 and other channel plans
  • Data Logging
  • Internal antenna
  • VoBoSync available
  • VoBoAnalytics available
  • Local and Over-The-Air Configuration
  • Pre-configuration available
  • IP66 / Type 4X Rated
  • Hazardous Area Use
VoBo XP
22 HL1GP1800x600

VoBo GP-1™ • VoBo HL-1™

Universal LoRaWAN® Endpoint

  • Battery Powered
  • LoRaWAN® Class A
  • 3 Analog Inputs: 4-20mA, 0-5V, 0-10V
  • 3 Digital Inputs: dry contact and voltage
  • 1 Digital Interrupt Input: dry contact wake-up
  • Serial: RS485 Modbus® RTU
  • Multiple Modbus® device read/write available
  • Capable of powering sensors
  • Supports US915 and more
  • Online and Offline Modes
  • Data Logging
  • Internal antenna
  • VoBoSync available
  • VoBoAnalytics available
  • Local and OTA Configuration
  • Pre-configuration available
  • IP66 / Type 4X Rated
  • General Purpose or Hazardous Area Use
VoBo GP-1
VoBo HL-1
25 TC1Straight800x600

VoBo TC™

12-Channel Thermocouple LoRaWAN® Endpoint

  • Battery Powered
  • LoRaWAN® Class A
  • 12 Thermocouple Channels
  • J, K, T, E, N, S, R, B Types
  • Reports in °C, °F, or mV
  • Cold Joint Compensation
  • Programmable Calibration
  • Open Circuit Detection
  • 1 Digital Interrupt Input: dry contact wake-up
  • Supports US915 and other channel plans
  • Online and Offline Modes
  • Data Logging
  • Internal antenna
  • VoBoSync available
  • VoBoAnalytics available
  • Local and Over-The-Air Configuration
  • Pre-configuration available
  • IP66 / Type 4X Rated
  • Hazardous Area Use
VoBo TC
25 TC1Straight800x600

VoBo TR™

(Coming Soon)

6-Channel Thermal RTD LoRaWAN® Endpoint

  • Battery Powered
  • LoRaWAN® Class A
  • 6 Thermal RTD Channels
  • PT100 and PT1000 RTD Types
  • 2, 3, and 4 RTD Wiring Configurations
  • Reports in °F, °C, or ohms
  • Individual RTD Channel Configuration
  • Individual RTD Channel Calibration
  • Open / Short Circuit Detection
  • Wake Up Input
  • Supports US915, EU868, and other channel plans
  • Online and Offline Modes
  • Data Logging
  • Internal antenna
  • VoBoSync available
  • VoBoAnalytics available
  • Local and Over-The-Air Configuration
  • Pre-configuration available
  • IP66 / Type 4X Rated
  • Hazardous Area Use
VoBo TR

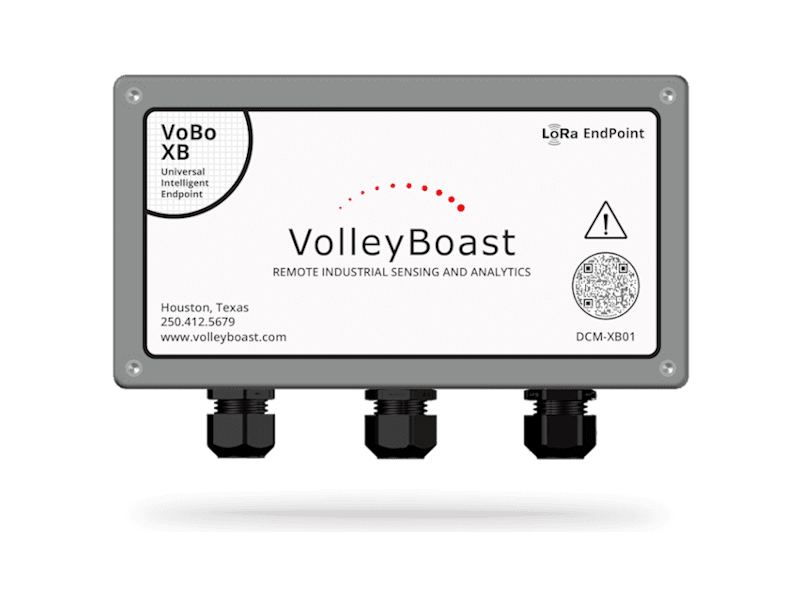

23 XBStraight800x600

VoBo XB™

(Coming Soon)

Next Gen Universal LoRaWAN® Bridge Endpoint

  • Battery Powered
  • LoRaWAN® Class A
  • 3 Analog Inputs: 4-20mA, 0-5V, 0-10V, NAMUR
  • Wired HART on Analog Inputs Available
  • 2 Digital Inputs: dry contact, voltage, PNP, NPN, Pulse Count
  • 1 Digital Interrupt Input: dry contact wake-up
  • Serial: RS485 Modbus® RTU, RS232
  • Multiple Modbus® device read/write available
  • Capable of powering sensors
  • Online and Offline Modes
  • Supports US915 and other channel plans
  • Data Logging
  • Internal antenna
  • VoBoSync available
  • VoBoAnalytics available
  • Local and Over-The-Air Configuration
  • Pre-configuration available
  • IP66 / Type 4X Rated
  • Hazardous Area Use
VoBo XB
