Your data is out there; let's go get it.

Using VoBo endpoints, industrial companies can collect data and provide the edge compute capability needed to fulfill the promise of Industry 4.0.

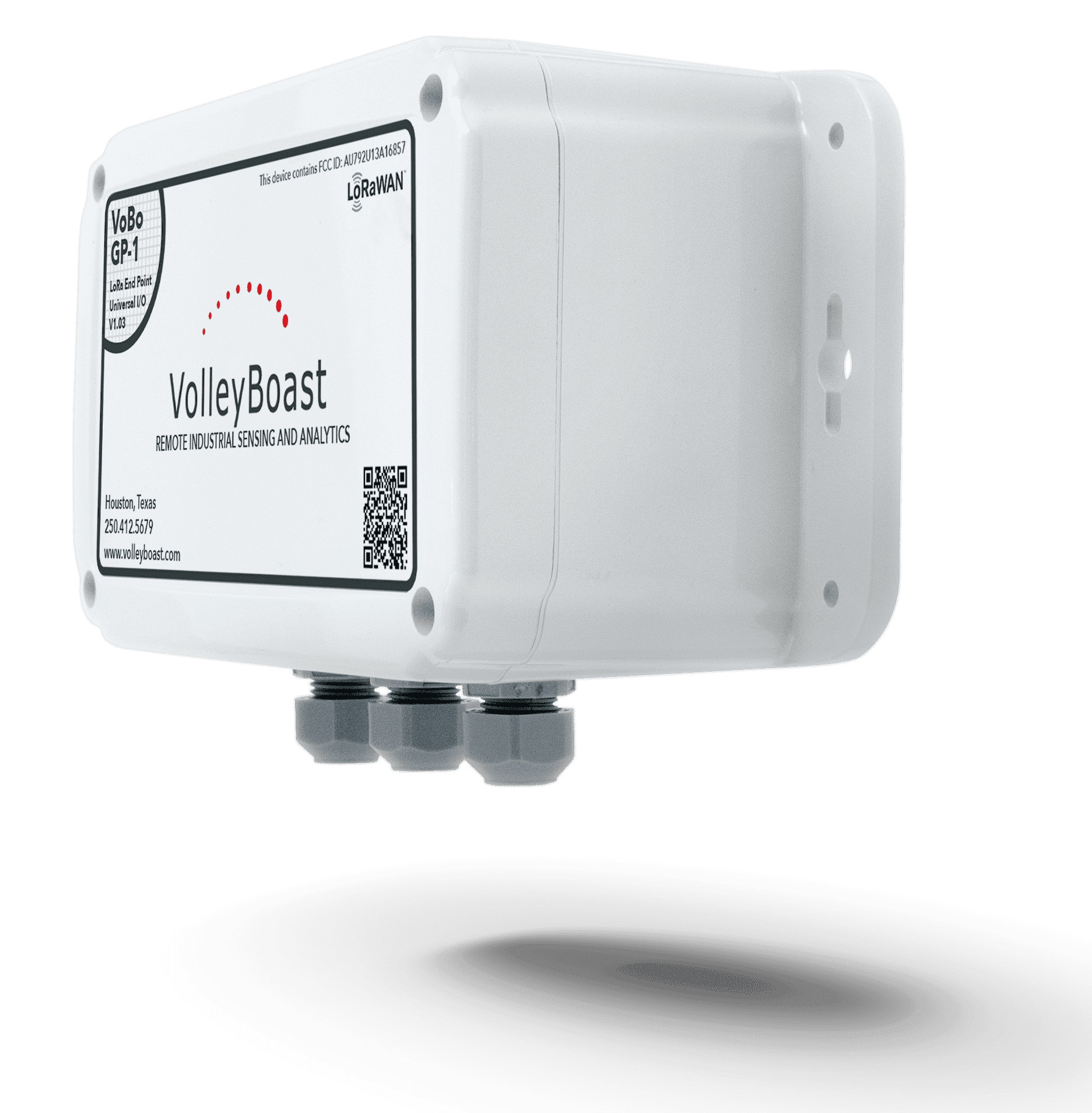

VoBo Endpoints A VoBo is an industrial grade endpoint that enables almost any sensor to be used for industrial LoRaWAN® solutions.

  • Bridge common industrial transmitters to LoRaWAN®; including 4-20mA, 0-5V, 0-10V, millivolt, Hart/4-20mA, Modbus RTU, Digital, and Thermocouples
  • Leverage LoRa® radio technology for scalability, low total cost of ownership (TCO), and secure communications
  • Easily configured (remotely or locally)
  • Battery-powered VoBo endpoints provide years of monitoring on a single battery
  • Customer defined analytics brings compute to the edge
  • The VoBo SL models are a cost-effective option for a single analog and HART/4-20mA transmitter

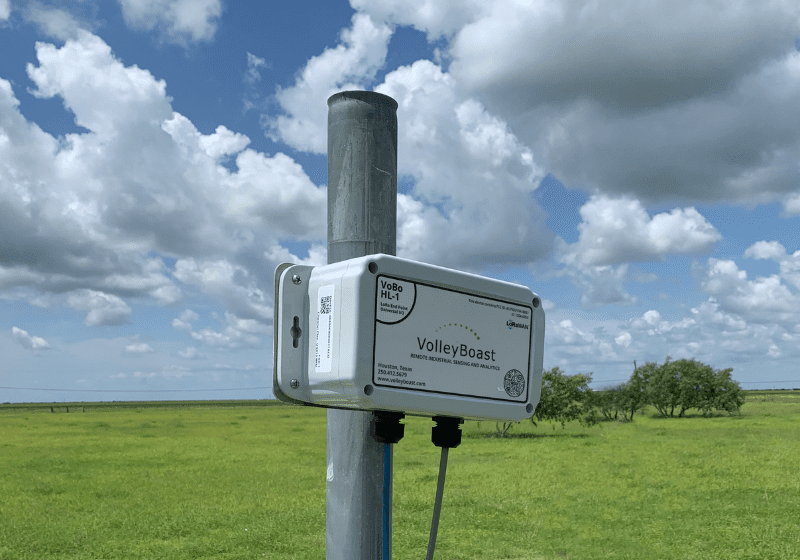

  • Constructed to be installed in harsh outdoor conditions, and models for hazardous areas
  • Easily connect legacy, difficult or remote sensors to industrial control processes
  • Compatible with all LoRaWAN compliant network servers and gateways
VoVoCallouts
Alliance_horizontal_member_RGB_ALLWhite

The VoBo utilizes LoRa, a long-range, low power, radio technology used in LoRaWAN networks. These networks are very cost-effective to deploy and scalable. The VoBo further reduces costs in many cases by eliminating cabling requirements for communications and power to the measurement points. The standards for LoRa and LoRaWAN are overseen by the LoRa Alliance. Volley Boast is a member of the LoRa Alliance. Additional information on LoRa and LoRaWAN can be found at lora-alliance.org.

VoBo Endpoints: Revolutionizing Data Capture

1

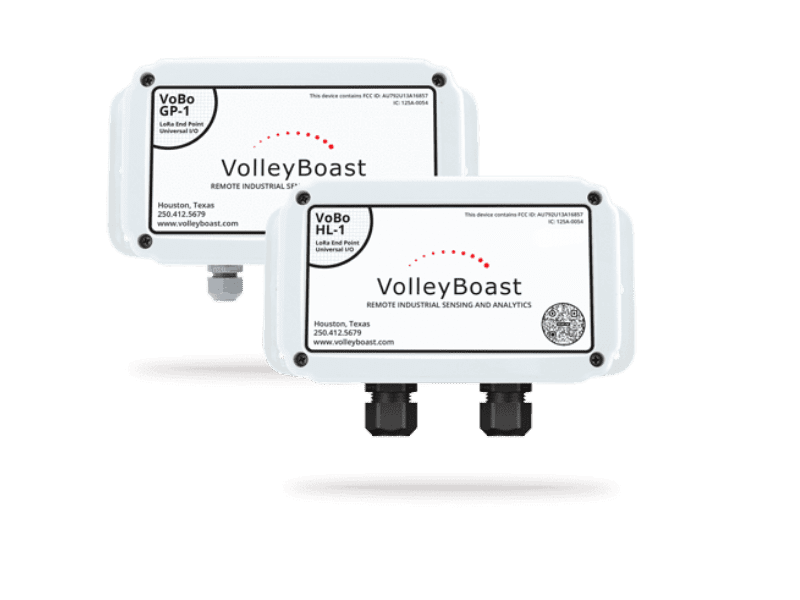

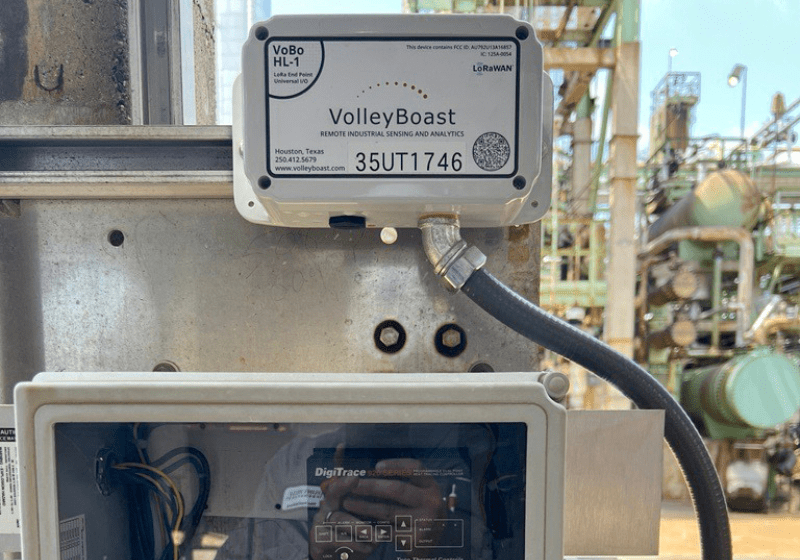

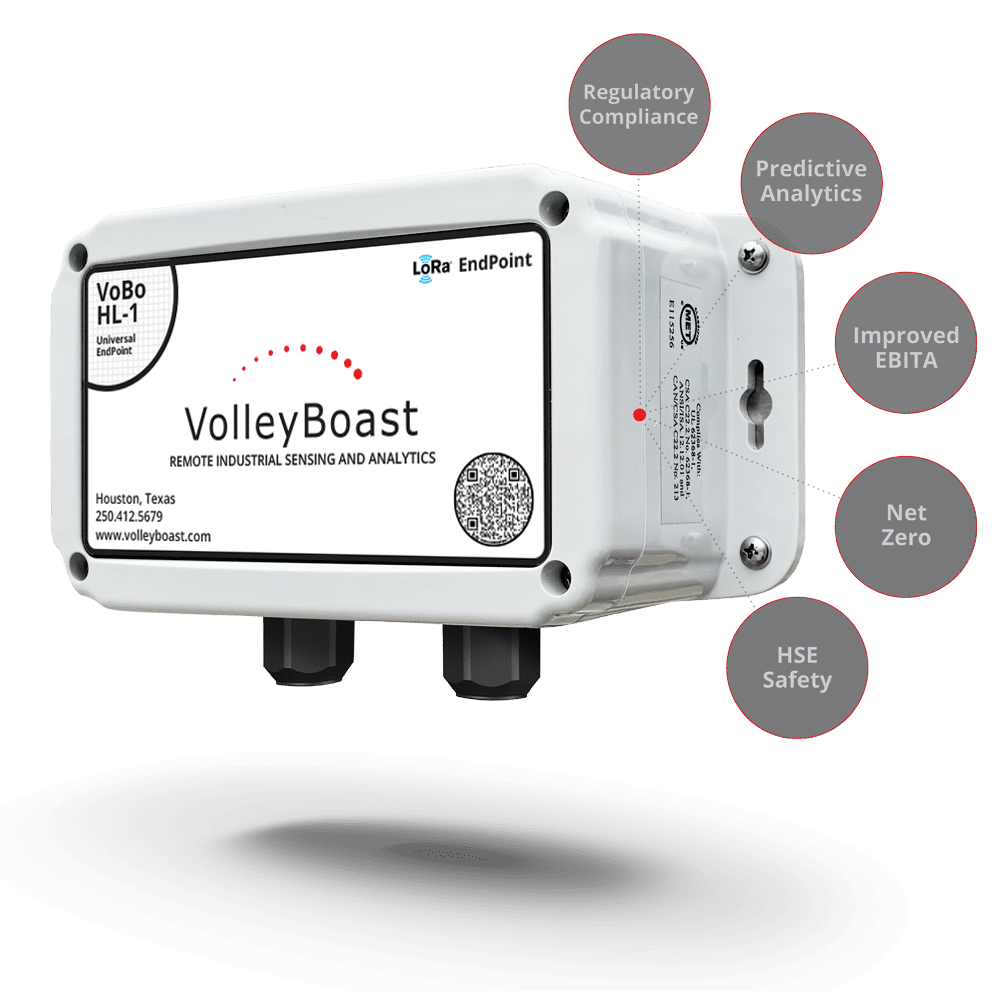

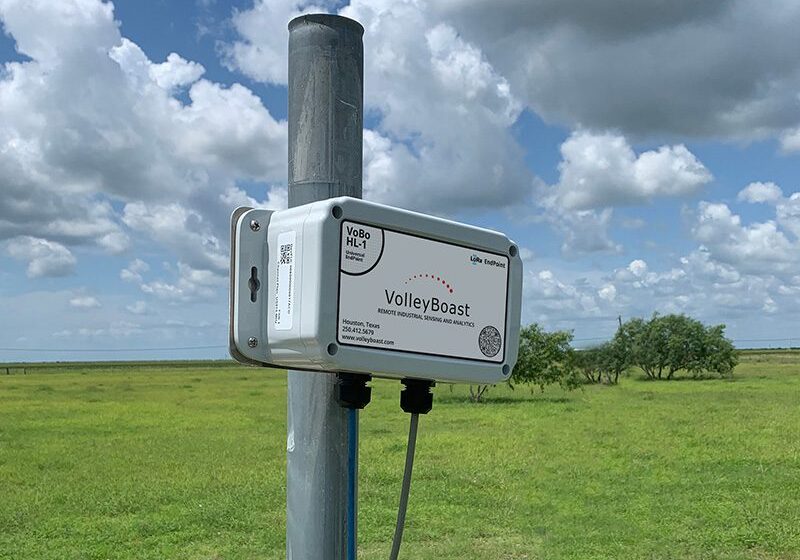

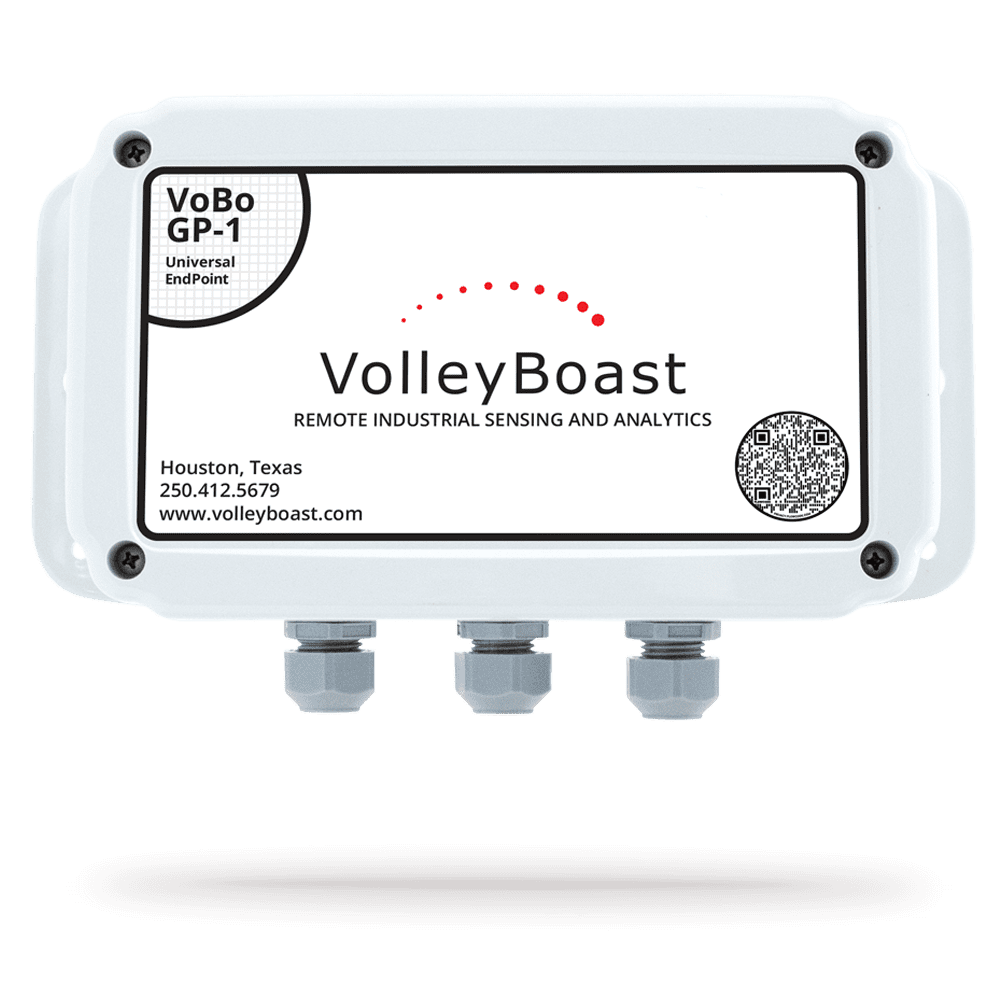

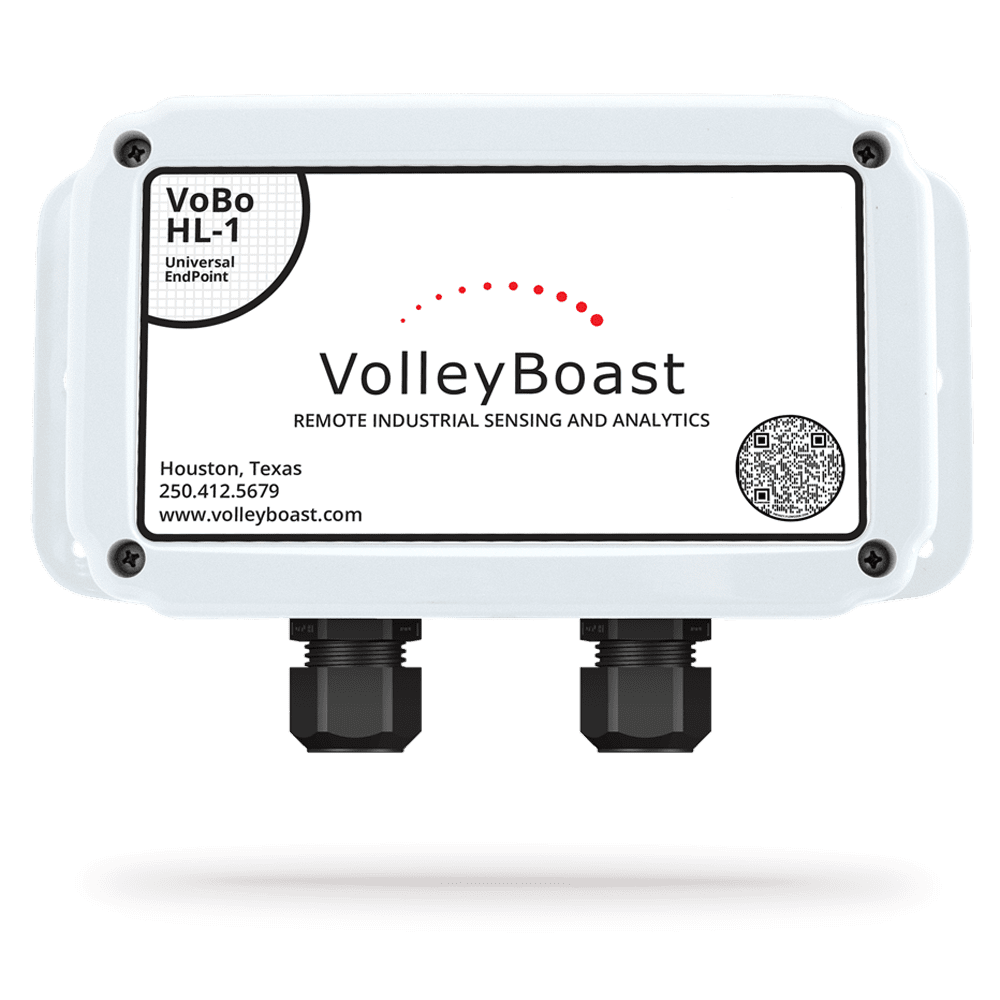

VoBo GP-1 • VoBo HL-1

Autonomous LoRaWAN® endpoint
• I/O: 8 channel – 3 analog, 3 digital, 1 interrupt, and 1 RS485 (Modbus RTU)
• 5 to 24 Vdc Power supply to terminal
• Battery powered - user replaceable
•VoBoSync option available
•Analytics plug-in option available
•Multiple Modbus RTU read/write option available
• Class 1, Division 2 and non-hazardous area model

2

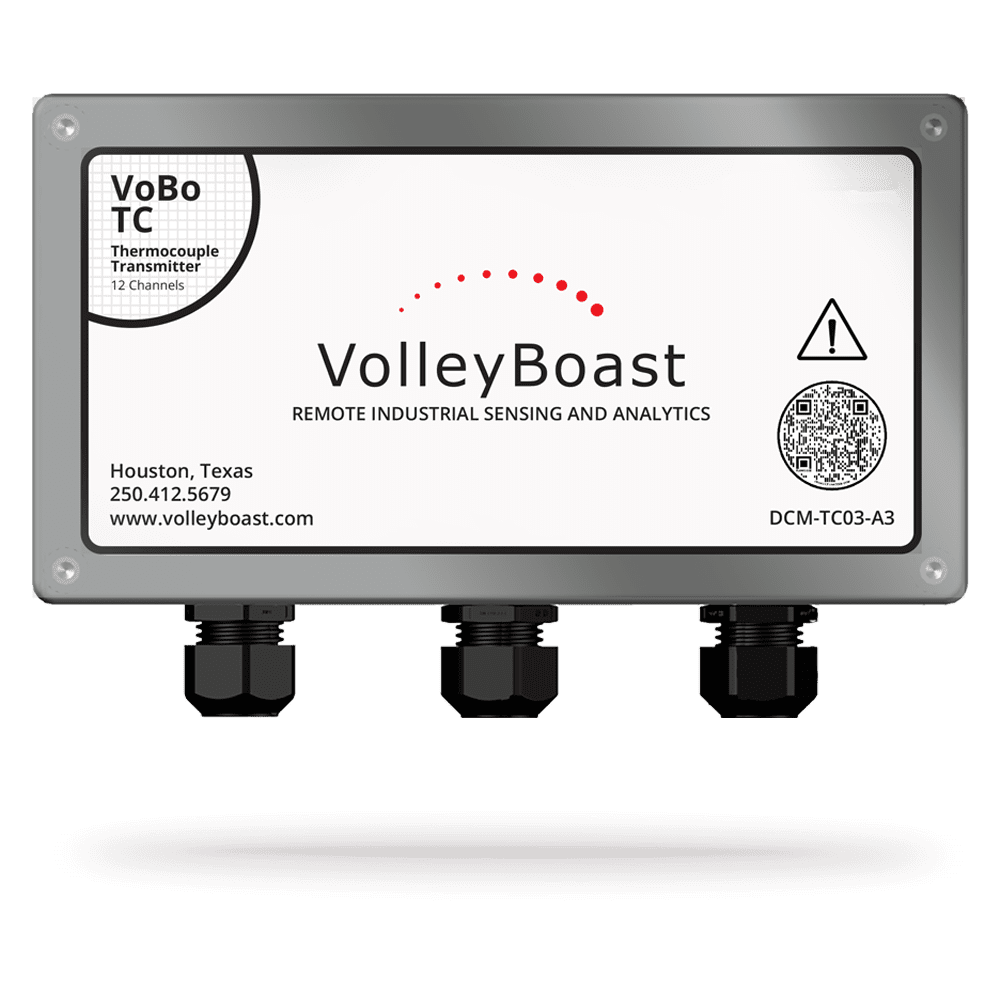

VoBo TC

12 channel LoRaWAN® reader
• 12 Selectable inputs
• Supports types J, K, T, E,
N, S, R, and B
• Reports in °C or mV
• Cold joint compensation
• Open circuit and burnout detection
• Battery powered - user replaceable
• Class 1 Division 2 Groups B, C, D  T4
• IP66/NEMA 4X

VB Web Updates (10)

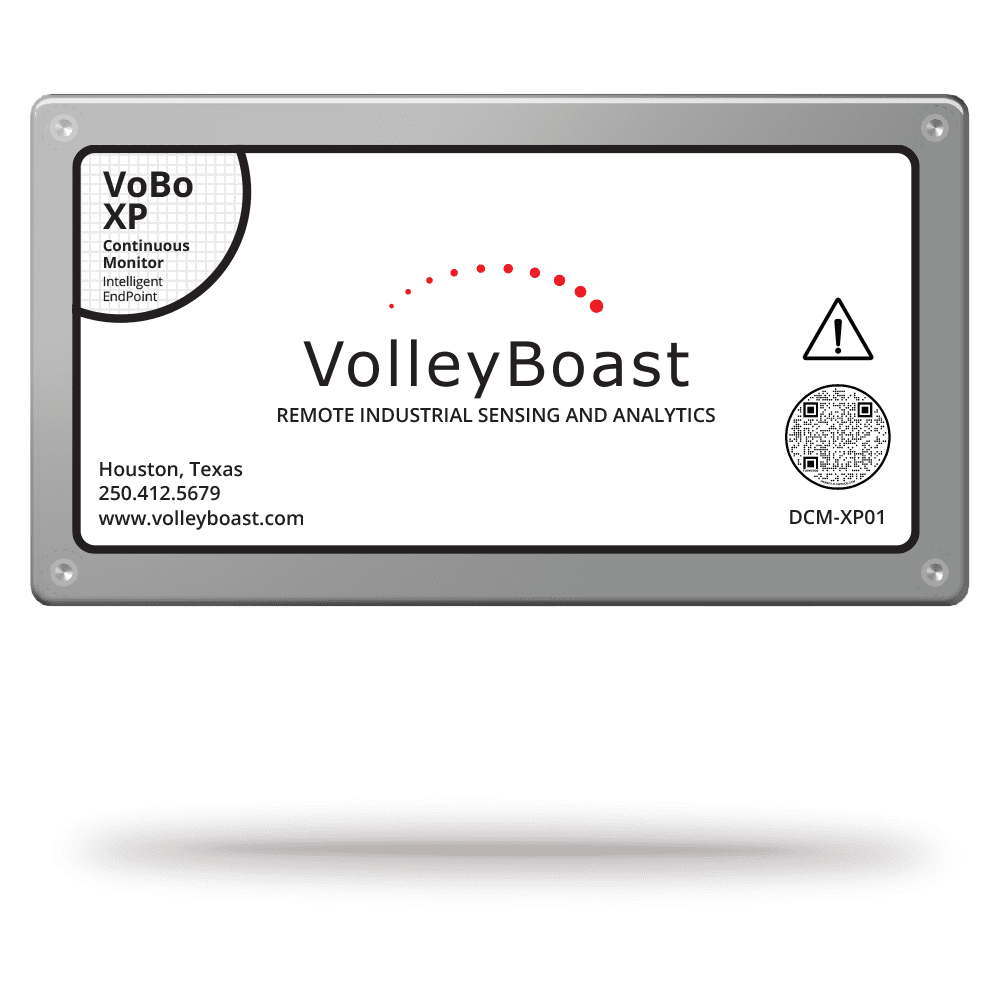

VoBo XP (Coming Soon)

Externally powered LoRaWAN® endpoint for continuous monitoring
• LoRaWAN Class A or Class C
• 7 input channels; 3 analog, 2 digital, 1 interrupt, 1 RS485 (Modbus RTU)
• 4 Load driver outputs
• 12-24 Vdc Input power
• Custom analytics at the edge capable
• Class 1, Division 2
• IP66/NEMA 4X

VB Web Updates (11)

VoBo SL (Coming Soon)

LoRaWAN® endpoint for a single transmitter
• Three models:
1. Analog - jumper configurable between current & voltage
2. Hart/4-20mA
3. Millivolt
• 4 to 24 Vdc power supply to terminal
• Battery powered - user replaceable
• Class 1, Division 2
• IP66/NEMA 4X

INDUSTRIAL APPLICATIONS

Measure and monitor nearly any data point in any industry.

Chemical

Chemical

Oil and Gas

Oil and Gas

ProductPageWater

Water

Food

Agriculture

ProductPagePulpPaper

Pulp and Paper

ProductPageMining

Mining

ProductPageEnvironmentalProtection

Eviromental Protection

ProductPageRegulatoryCompliance

Regulatory Compliance
