VoBo XB

XB_Straight

VoBo XB (Coming Soon)

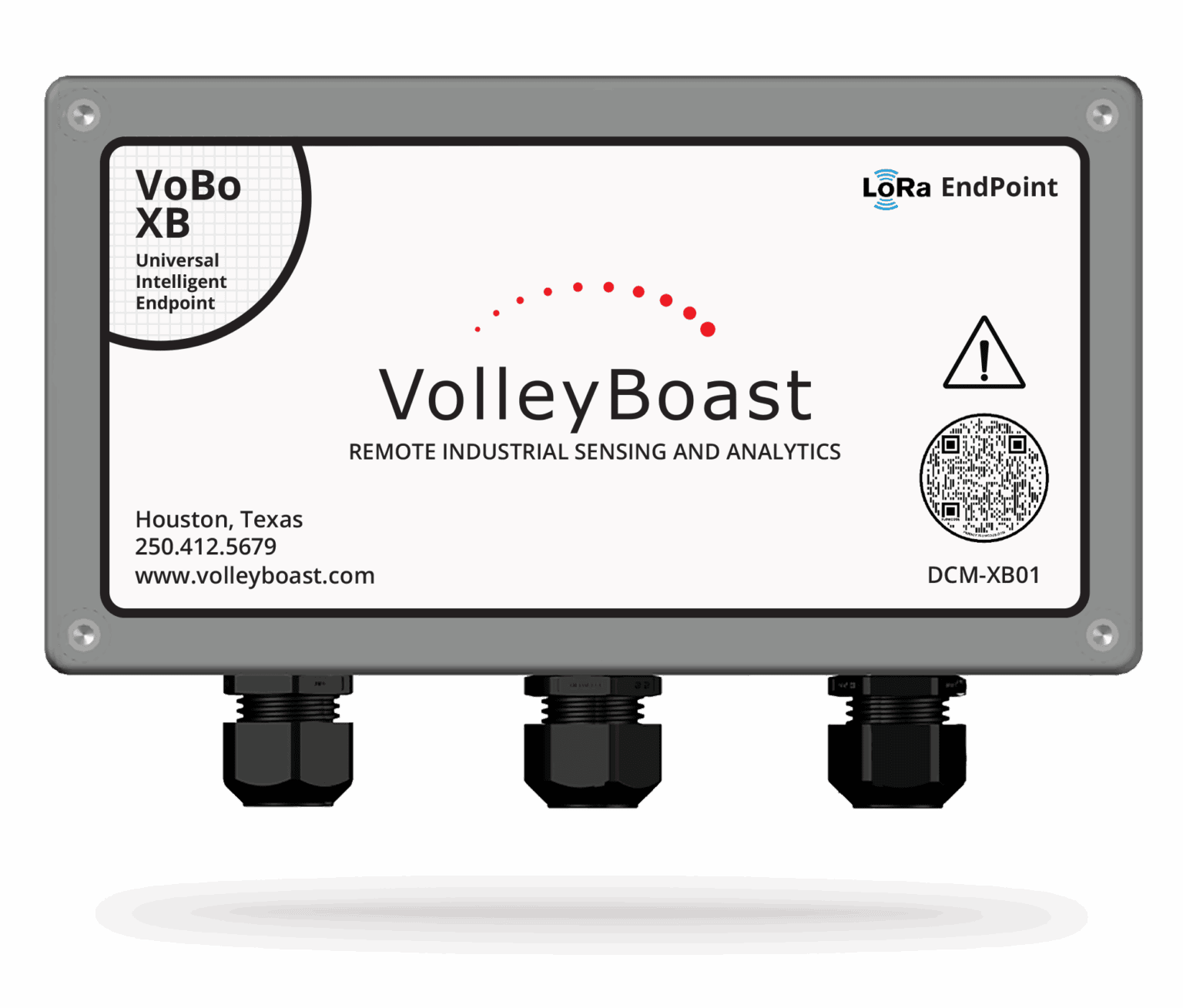

Universal Battery Powered LoRaWAN Bridge Endpoint
 for General Purpose or Hazardous Area Use

OVERVIEW

The VoBo XB is the next evolution of VoBo battery-powered, industrial-grade, multiple-input, universal LoRaWAN® bridge endpoints. It transforms wired sensors, transmitters, and instruments into wireless LoRaWAN®-enabled devices. With support for analog, discrete, and serial inputs, the VoBo XB seamlessly integrates your preferred, qualified, and legacy sensors into data acquisition and monitoring systems.

The VoBo XB is a battery-powered device capable of supplying power to connected sensors and instruments, with a typical battery life exceeding three years, and user-replaceable cells. It supports both local and over-the-air configuration via downlinks. Designed with a rugged enclosure and internal antenna, the VoBo XB can be installed in nearly any environment. It is available for general-purpose use or certified for hazardous areas.

I/O

• 3 Analog Inputs – 4-20mA, 0-5V, 0-10V, HART®/4-20mA,
  0-5mA NAMUR proximity
• 3 Digital Inputs – dry contact and voltage
• 1 Digital Interrupt Input – dry contact wake-up
• Serial Input – RS485 Modbus RTU
  (option for multiple Modbus devices)

Data Logging

• Online and Offline modes for connected or
  unconnected data collection and recovery.

Available with VoBoSync

VoBoSync (Pat. Pending) technology synchronizes data
  collection on any number of VoBoSync-enabled devices,
  while avoiding battery-draining retransmissions
  due to packet collisions.

Available with VoBoAnalytics

• Add an analytics plug-in to your VoBo.
• Run functions on the collected data, bringing
  computational insights to the very edge.

Configure

• Local, over-the-air, or order pre-configured
  with your application parameters.

Power Supply

• Years of service with a user-replaceable battery
• Sensor power supply capability

Transmission

• US915, EU868, and other channel plans
• LoRaWAN 1.0.4 compliant and backwards compatible
• Works with any LoRaWAN-compliant network
• Internal antenna
• Up to 6 miles RF range, LOS

Rugged

• IP66 / NEMA 4X Rated
• -40°C to 80°C operating temperature

Certified Use

• General Purpose or Hazardous Areas

APPLICATIONS

Temperature, Pressure, Flow

Tank Level

Wellhead Production

Heat Trace Controller

Motor Condition

Emissions

Weather Station

Water Quality

Compliance

Safety
