VoBo TC

$795.00

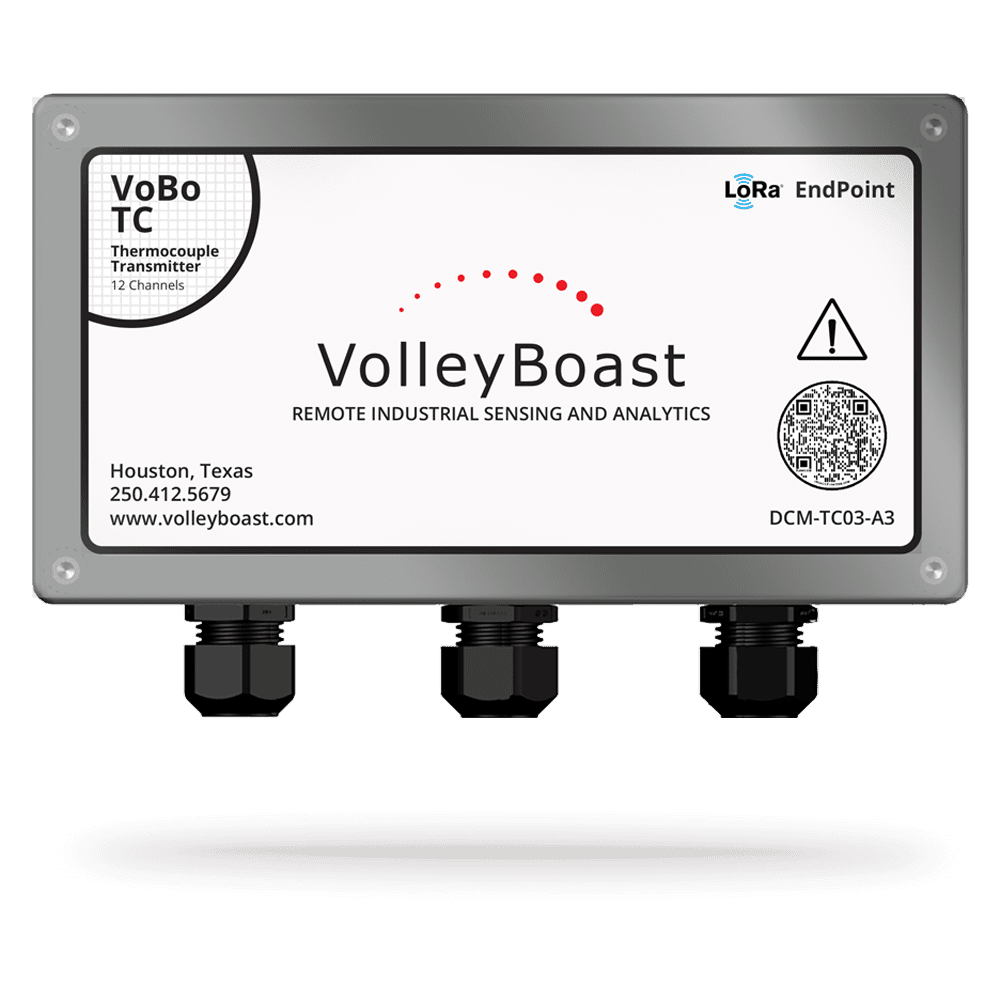

A 12-channel LoRaWAN thermocouple reader, certified for use in Class1 Div 2 hazardous locations, converting wired sensors and transmitters into LoRaWAN enabled wireless long-range devices.

Contact Volley Boast for VoBo Analytics options and pricing.

Product Details

A 12-channel LoRaWAN thermocouple reader, certified for use in hazardous locations, converting wired sensors and transmitters into LoRaWAN enabled wireless long-range devices.

  • LoRaWAN 1.0.4 compliant, backwards compatible
  • US915 (902-928 MHz) channel plan
  • Powered by a D-Cell user-replaceable battery. The battery has an expected life of 3+ years.
  • Up to 6 miles transmission range (line of sight)
  • Configured locally or remotely
  • Rugged
    • IP66/NEMA 4X rated
    • Operating temperature -40°C to 80°C
    • GRP enclosure with captive lid screws
  • Exception Based Reporting
    • Wake Up terminal provides for exception-based reporting (dry contact switch)
  • Other
    • ARM Cortex-M4 microprocessor
    • 32 MB flash memory
    • 16 Bit ADC

Thermocouple Input Channels:

  • 12 Selectable thermocouple inputs
  • Supports Type B, E, J, K, N, S, R, and T
  • Reports in °C or mV
  • On board Cold Joint Temperature compensation.
  • 16 Bit measurement resolution ±0.001mV
  • Open circuit detection
  • NIST ITS-90 Table Lookup and Interpolation

Applications Include:

  • Steam Trap Monitoring
  • Heat Trace monitoring
  • Food and Beverage Processing Quality Control
  • Detecting vessel hotspots
  • Rotating Equipment condition monitoring
  • Heat Exchanger Fouling
  • Heat Flux monitoring
  • Thermal Profiling

Certified for use in Hazardous Locations:

  • UL-62368-1, CSA C22.2 No. 62368-1
  • UL 121201 and CAN/CSA C22.2 No.213
  • Class I, Division 2, Groups C,D T4
  • Class II, Division 2, Groups F,G T135 °C
  • Class III, Division 1
