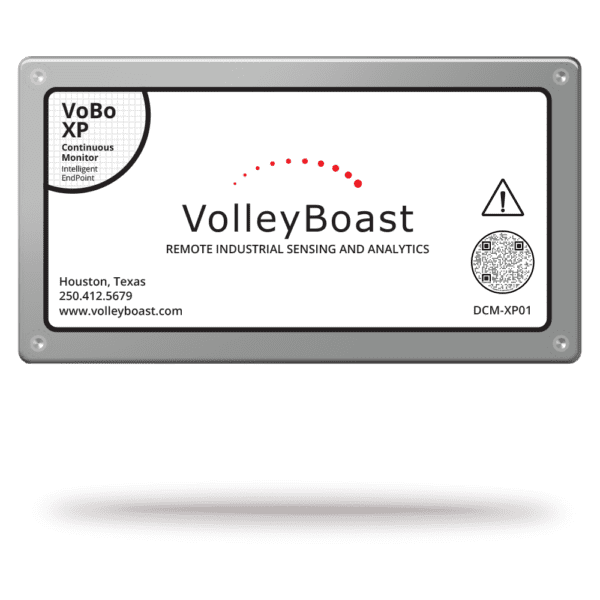

VoBo XP
Overview
The VoBo XP™ is an externally powered, industrial-grade, 7-input, 4-output LoRaWAN® endpoint for general-purpose or hazardous-area use. It can operate in LoRaWAN® Class A or Class C modes and continuously read connected sensors. The VoBo XP has 4 digital outputs, activated through downlinks or on-board logic, or lock them out if preferred.
The VoBo XP™ can operate on a solar-charged battery system where a local power source is a challenge. The analog, digital, and serial channels support a wide range of sensors and simplify data collection. Configure the VoBo XP™ locally through a serial connection or over the air with downlinks. LoRa® radio technology provides robust wireless communication, and the LoRaWAN® protocol enables economical scaling. The VoBo XP™’s rugged enclosure and robust internal antenna allow installation and connectivity almost anywhere.
- Externally Powered
- LoRaWAN® Class A and C
- 3 Analog Inputs – 4-20mA, 0-5V, 0-10V, NAMUR
- 2 Digital Inputs - dry contact, voltage, PNP, NPN, Pulse Count
- 1 Digital Interrupt Input – dry contact wake-up
- 4 Digital Outputs - low side drivers
- Digital Output control by downlink or on-board logic
- Serial – RS485 Modbus® RTU, RS232
- Multiple Modbus® device read/write available
- Online and Offline Modes
- Capable of continuously powering sensors
- Supports US915 and other channel plans
- Data Logging
- Internal antenna
- VoBoSync available
- VoBoAnalytics available
- Local and Over-The-Air Configuration
- Pre-configuration available
- IP66 / Type 4X Rated
- Hazardous Area Use
Product Documentation
For additional information and useful tools, visit the Volley Boast Customer Portal.
Real World Use Cases
Externally Powered LoRaWAN® Endpoint for Continuous Monitoring
Asset Integrity
Process Parameters
Environmental & Saftey
System Status
Electrical Power
Utility Monitoring
purchase VoBo XP-GP
$1,095.00
purchase VoBo XP-HL
$1,295.00
The VoBo XP-HL is hazardous-area certified; see datasheet for details.
Other Options
• Pre-configuration $25.00
• VoBoSync $45.00
• Multiple Modbus Device R/W $250.00
Contact Volley Boast for VoBoAnalytics options and pricing.
